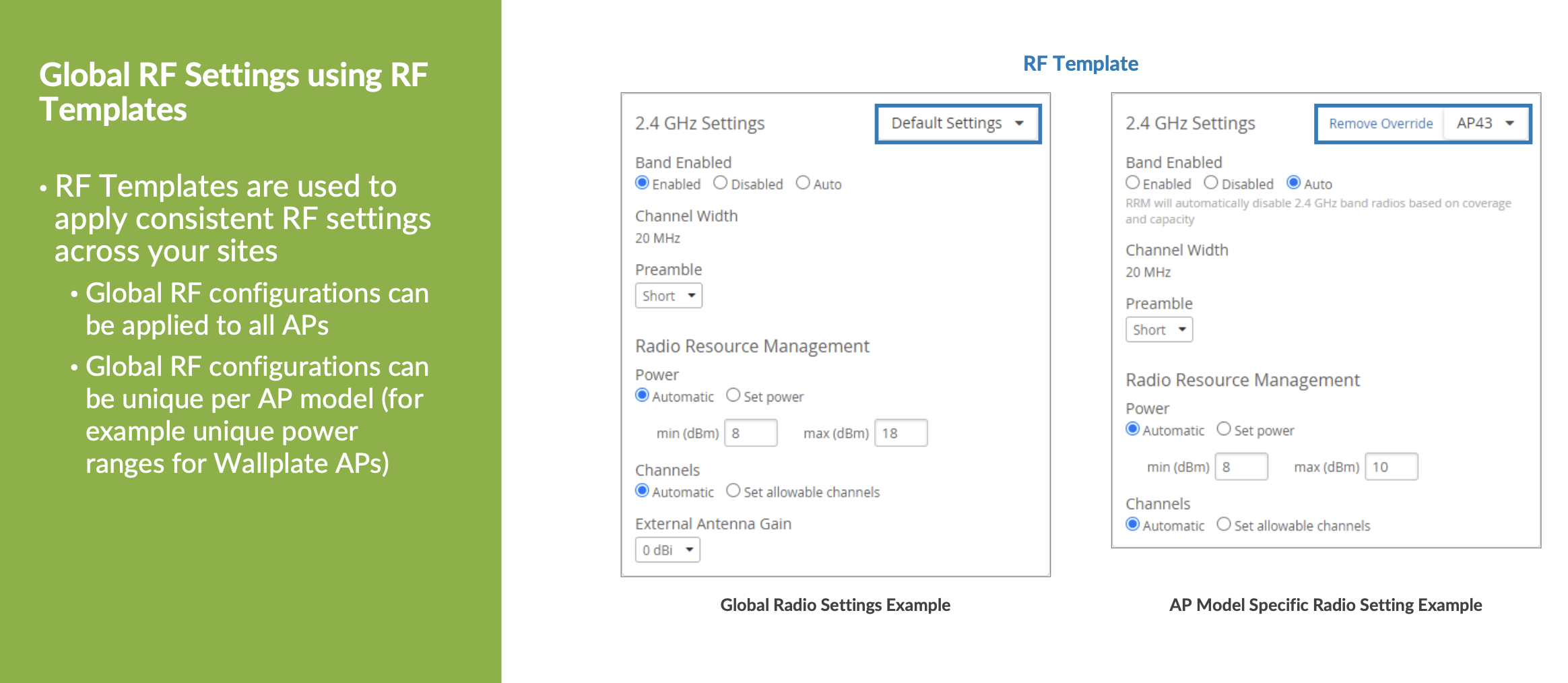

RF Templates

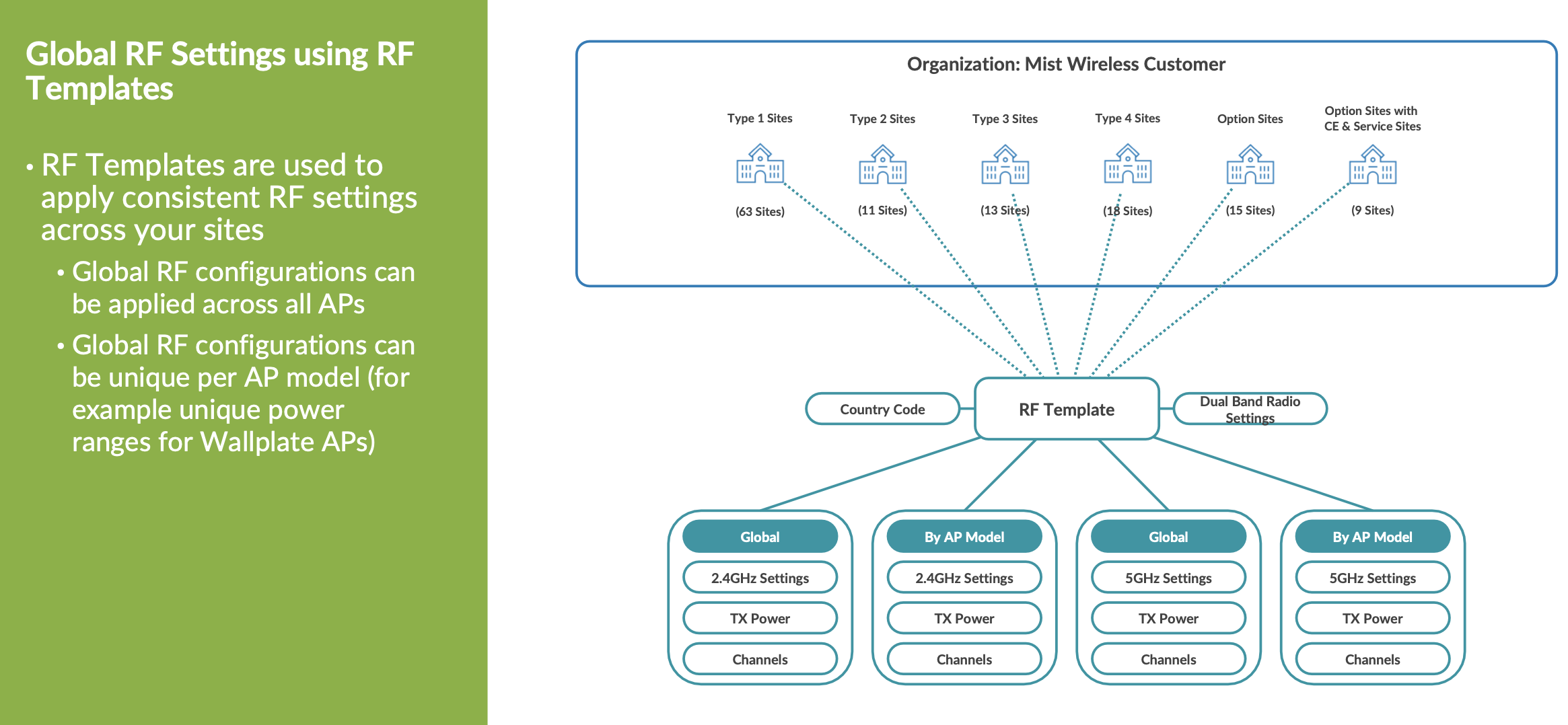

RF Templates define the country specific information along with basic RF and RRM (Radio Resource Management) parameters.

For smaller deployments they may not be required.

Key points to consider

  • Country – very important to get Regulatory domain configured correctly.
  • Limit power ranges (if required)
  • Channel for 2.4 and 5 GHz
  • Channel selection. It is always worth checking which 2.4 GHz channel scheme is default for a particular country.
    • When “Automatic” is selected
      • For 2.4 GHz, Mist will use:
        • Channels 1, 6, and 11 for all countries
      • 5 GHz
        • Based on allowed channels per regulatory domain
        • Note: Channel 144 must be enabled at the site level (if required)
